Recycling Crushing PlantsUrban Elite range of Crushing Plants for recycling applications in urban environments
The Parker urban elite range of crushing & screening plants are ideal for recycling, demolition and volume reduction projects in constrained inner city environments.
The RockRanger HR0750 jaw crusher & HI0870 impactor are transported using a standard hook lift truck, whereas the RockRanger JR0850 uses integral swivelling hydraulic jacks to raise the unit from ground level and enable a flat bed trailer to reverse under for transport.
Drive is from a diesel hydraulic power-pack complete with sound attenuation for use on sites in noise sensitive areas.
All models are fed by a vibrating grizzly and are capable of producing up to 140 tph depending on the feed material and closed side setting used.
Each plant is easy to operate and all service work can be carried out from the ground.
Also available is the mobile MR0750 RockRanger as a single unit road towable jaw crusher for ease of transport from site to site.
RockRanger JR0850
The ‘RockRanger JR’ is a fully transportable primary crushing plant complete with a Parker ‘RockSizer’ single toggle Jaw crusher. The under frame is carried on bottom members designed to distribute ground loading, and is complete with a set of four hydraulic jack legs operated from the main plant hydraulic system to raise the crusher up for positioning on a suitable trailer unit. Built around a strong straight beam chassis with standard supports for feed section, jaw crusher, power unit and conveyor frame. The ‘RockRanger JR’ is a high-capacity, extremely mobile crushing unit suitable for urban recycling and demolition projects.
Feed Hopper
Vibrating Grizzly Feeder
By-pass Chute
RockSizer Jaw Crusher
Optional Magnetic Separator
Product Conveyor
Side Dirt Conveyor
Power Unit
Control Station
| Weight (tonnes) | Capacity (tph) | Max Feed Size (mm) | Crusher lift-up Clearance | Travelling Dimensions (mm) | |||
| 50 | 125 | Length | Width | Height | |||
| 25.5 | 50/65 | 105/140 | 455 | 1150 | 7400 | 2500 | 2700 |
| Working Dimensions (mm) | |||||||
| Length | Width | Height | |||||
| 8800 | 3200 | 3350 | |||||
Options
- Side discharge conveyor
- Over-band magnet
- Hydraulic clutch release
- Dust suppression
RockRanger HR0750
The ‘RockRanger’ HR is a fully transportable hook-lift type primary crushing plant complete with a Parker ‘RockSizer’ single toggle Jaw crusher. The under-frame members are designed to the universal industry standard for hook lift frames [DIN or CHEM Standard] and when off-loaded distributes ground loadings.
The straight beam design chassis incorporates access and maintenance platforms to the engine and crusher and platforms to one side of the crusher feed chute. The ‘RockRanger’ HR is a high-capacity, extremely versatile mobile crushing unit suitable for urban recycling and demolition projects.
Underframe & Hook Arrangement
Feed Hopper
Vibrating Grizzly Feeder
By-pass Chute
RockSizer Jaw Crusher
Side Conveyor
500mm wide, 1350mm discharge height
Forward Product Conveyor
Magnetic Separator
Power Unit
Maintenance Platform
| Weight (tonnes) | Capacity (tph) | Max Feed Size (mm) | Travelling Dimensions (mm) | ||
| Length | Width | Height | |||
| 16 | 140 | 420 | 7370 | 2500 | 2600 |
| Working Dimensions (mm) | |||||
| Length | Width | Height | |||
| 8400 | 3040 | 3233 | |||
Options
- By-pass Chute
- Magnetic Separator
- Dust Suppression
- Dirt Conveyor
- Electric Power
HI0870 Impactor
The HI0870 is a fully transportable hook-lift type primary crushing plant complete with a 800mm diameter x 700mm impactor. The under-frame members are designed to the universal industry standard for hook lift frames [DIN or CHEM Standard] and when off-loaded distributes ground loadings. The straight beam chassis design incorporates access and maintenance platforms to the engine, crusher and feed chute, while the touchscreen control system and wireless remote control provide ease of operation, the versatile HI0870 mobile crushing unit is ideally suited for urban recycling and demolition projects.
Underframe & Hook Arrangement
Feed Hopper
Vibrating Grizzly Feeder
0.7m x 2.6m
By-pass Chute
RockSizer Jaw Crusher
800mm diameter x 700mm
Side Conveyor
500mm wide, 1350mm discharge height
Forward Product Conveyor
1750mm discharge height
Magnetic Separator
Power Unit
Maintenance Platform
| Weight (tonnes) | Crusher Size (mm) | Max Feed Size (mm) | Travelling Dimensions (mm) | ||
| Length | Width | Height | |||
| 16 | 800 x 700 | 300 | 8450 | 2690 | 2600 |
| Working Dimensions (mm) | |||||
| Length | Width | Height | |||
| 9715 | 3100 | 3220 | |||
Options
- By-pass Chute
- Magnetic Separator
- Dust Suppression
- Dirt Conveyor
- Electric Power
MR0750 RockRanger
The RockRanger MR0750 is a fully mobile primary crushing plant complete with a Parker RockSizer single toggle Jaw crusher. Built around a strong straight beam chassis with standard supports for feed section, crusher, power unit and conveyor frame. The chassis is complete with access/maintenance platforms to the crusher and power unit and a main operator platform overlooks all stages of operation. The RockRanger MR is a high-capacity, extremely mobile crushing unit suitable for demolition, quarry or gravel feed application.
Feed Hopper
4m³ capacity
Vibrating Grizzly Feeder
0.8m x 3.3m
Optional Side Discharge Conveyor
500mm wide, 2700mm discharge height
RockSizer Jaw Crusher
700mm x 500mm
Optional Over-band Magnet
Product Conveyor
650mm wide
Power Unit
Diesel electric or electric
| Weight (tonnes) | Crusher Size (mm) | Max Feed Size (mm) | Travelling Dimensions (mm) | ||
| Length | Width | Height | |||
| 24 | 700 x 500 | 410 | 9620 | 2400 | 4000* |
| Working Dimensions (mm) | |||||
| Length | Width | Height | |||
| 13572 | 2400 | 4000 | |||
*Transport height with handrail removed
Options
- Side discharge conveyor
- Magnetic Separator
- Dust Suppression
- Hydraulic jacks, tail lift, product conveyor, folding side conveyor
- Electric Power
Videos
Download Brochures
RockRanger JR
RockRanger HR
HI Impactor
RockRanger MR

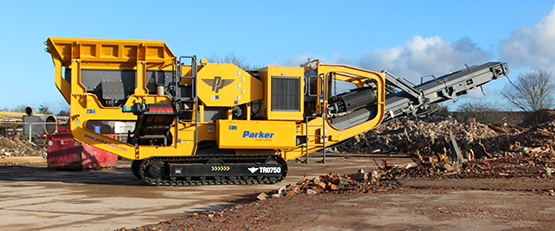

TR0750 Tracked Jaw
