TransMix / 80-200 TPH

MODULAR CONTAINERISED BATCH ASPHALT PLANTTransMix Series

The Parker TransMix range has been designed to fit in standard open top ISO shipping containers while still maintaining many of the StarBatch range features and capable of producing a wide range of high quality mixes.

The quick erect modular tower and all main sections of the plant are designed to be free standing with no tension or uplift to the slab bases and no holding down bolts required.

Download Brochure

Enquire Now

Parts & Aftersales

Features

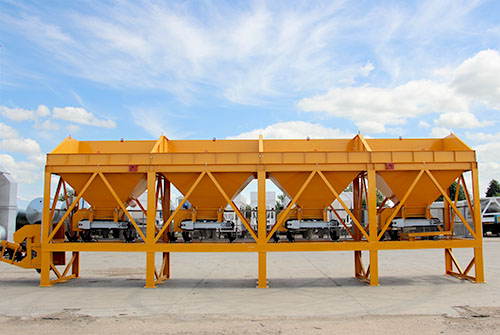

Aggregate Feed Unit, Belt Feeders & Collecting Conveyor

Compact, robust, modular 4 hopper cold feed unit with highly accurate AC variable speed inverter controlled direct drive motor/gear units.

Aggregate Dryer

Easily transported aggregate dryer with advanced design of internal lifters optimizing thermal efficiency for maximum heat transfer. Choice of multi-fuel burners. Nylon support & thrust rollers reduce wear, vibration and noise.

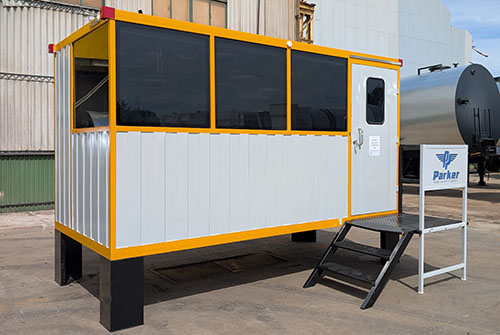

Control System

The insulated and clad control cabin is supplied with a range of advanced control options from touchscreen to PC based, fully automatic systems and fully programmable recipe storage and archive facilities.

Mixing & Screening Tower

Quick erect, modular tower; heavy duty aggregate screen with-in a fully sealed dust housing.

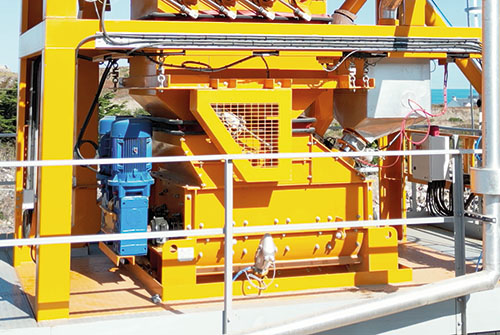

High Efficiency Mixer

Twin shaft, direct gear/motor drive high efficiency paddle mixer. Hard wearing replaceable abrasive resistant liner plates, paddle arms and tips. Discharge to truck or mixed material storage facility.

Dust Filter

Dependant on location the containerised StarBatch is available as standard with bag filter and fan unit for secondary dust collection achieving less than 20mg/m³.

Options

Fully automatic multi-fuel burner
Inclined skip type mixed material storage
Reclaimed dust systems
Imported filler silo
Reclaimed asphalt feed system (RAP)
SMA fibre and additive systems

Specifications

	Units	TransMix 1000	TransMix 1500	TransMix 2000	TransMix 2300
Capacity	tph	80*	120*	160*	200*
Dryer Diameter	m	1.5	1.8	2.0	2.2
Air Volume	m³/h	29,580	41,840	59,130	64,000
Screen Size	m	1.5 x 3.0	1.4 x 5.0	1.5 x 5.0	1.8 x 5.0
Mixer Size	kg	1,000	1,500	2,250	2,750

*Plant capacity is based on 150°C from mixer. Average moisture content of 3%, including 3% filler and 5% bitumen in the mix at sea level with 30˚C ambient temperature, 45 second weigh/mix cycle, 80 batches per/hr.
